New manufacturing technology could transform production of critical components

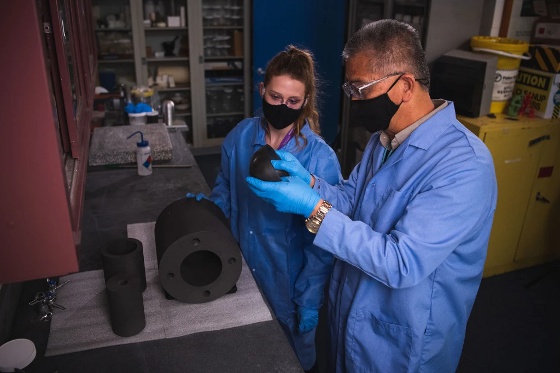

Los Alamos National Laboratory scientists Chris Chen and Brianna Musico inspect a certifiable test object developed through the P-HIP process. [Photo courtesy: LANL]
To meet the needs for industrial applications where there is little tolerance for failure, researchers at Los Alamos National Laboratory (LANL) have developed a near-net-shape manufacturing technology that produces higher quality, more reliable components with greater efficiency.
The novel pseudo-hot-isostatic-pressing (P-HIP) technology enables the manufacturing of complicated shapes using uniaxial hot pressing with near-net shape capability, meaning items emerge very close to their final shape.
"This is a transformational concept for the ceramics and powder metallurgy industries," said Chris Chen, researcher in the Sigma Fabrication Manufacturing Science group at the LANL. "Hot-pressing of ceramic and metal powders has been used to produce a wide variety of advanced ceramics and materials for nearly 100 years. However, little improvement has been implemented since this technique was initially developed, and limitations such as the performance quality and variety of shapes that can be made are persistent challenges, particularly in uniaxial hot-pressing."
An improved process for better performance
The P-HIP concept improves upon the shapes achieved through conventional uniaxial hot-pressing, in which external pressure is applied from top and bottom on materials under high heat. In conventional hot-pressing of that kind, only simple shapes such as cylinders, cubes, and discs can be achieved. Further refining the shape -- a thin-walled Certifiable Test Object, for instance -- then involves energy- and time-intensive machining. P-HIP also improves upon pressureless sintering, a popular technology for manufacturing components without any external pressure. Compared to the P-HIP process, components produced by pressureless sintering tend to have higher porosity, or void space, which contributes to lower performance.
Working over several years at the Advanced Ceramics Processing Laboratory at Los Alamos, Chen and his team developed a near-net-shape P-HIP to produce high-performance ceramic or metal with a combination of important properties: versatile and complicated shape, high density, uniform density distribution, and minimal amounts of machining required. The products' enhanced mechanical properties mean higher strength to withstand severe stress and survive longer, better electrical properties/better conductivity, stronger magnetic properties, and so on.

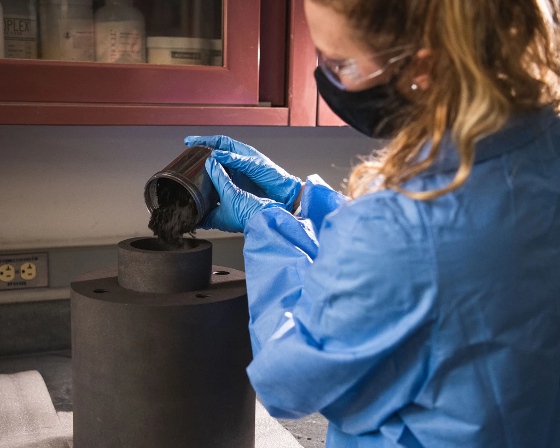

LANL scientist Brianna Musico demonstrating the powder loading for the P-HIP process. [Photo courtesy: LANL]
"What we've found is that P-HIP can outperform other manufacturing technologies, including conventional hot-pressing, slip-casting, cold-isostatic-pressing, extrusion, injection molding, and additive manufacturing," said Chen. "P-HIP technology delivers high added value and will increase the performance and reliability of critical components for the nation and for a wide array of industries."
A process with transformative applications
The P-HIP technique uses graphite flakes, hexagonal boron nitride powder, or other appropriate solid lubricant to replace the solid graphite punch used in conventional hot pressing. The solid lubricant can easily slide, redistributing stress from high-stress concentration areas to low-stress concentration areas, a self-stress-relief action. The graphite flake or hexagonal boron nitride powder lubricants can withstand temperatures up to 3,000 C. The method provides substantially uniform pressure that can create near-net-shape parts that also have high density distributed more evenly through the whole part.
The process produces stronger, more complicated, and more reliable parts with fewer rejections, saving energy, time, and cost on finish machining.

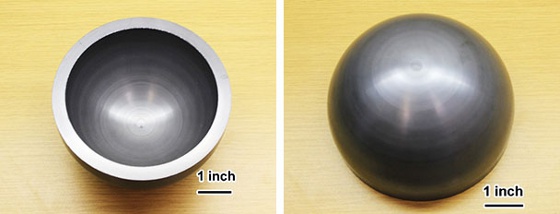

Top and bottom views of a boron carbide certifiable test object Produced by the P-HIP technology. [Photo courtesy: LANL]
P-HIP's most transformative applications may be those materials that either have a prohibitive cost for failure, such as oil and drilling parts, turbine engines, or nuclear reactor components; or those that cannot afford to fail at all, such as soldiers' head protection, airplane engines, or satellite equipment. Ultimately, the technology may measure its savings not just in dollars and cents, but in the health of the environment and the enhancement of human safety.
The development of P-HIP was supported by the Department of Energy Office of Energy Efficiency and Renewable Energy. A provisional patent is pending.
If you have questions, you can contact LANL's Chris Chen through LinkedIn at linkedin.com/in/chris-chen-652a7085.
Get a four-page takeaway sheet on the technology here. An additional contact is listed on this sheet.
Source: Los Alamos National Laboratory
Published September 2022
