World's most powerful X-ray laser fired up for first time

SLAC's newly upgraded Linac Coherent Light Source (LCLS) X-ray free-electron laser (XFEL) successfully produced its first X-rays, creating unparalleled capabilities that will usher in a new era in research. [Credit: Greg Stewart/SLAC National Accelerator Laboratory]





By Ali Sundermier, SLAC

With up to a million X-ray flashes per second, 8,000 times more than its predecessor, the new instrument transforms the ability of scientists to explore atomic-scale, ultrafast phenomena that are key to a broad range of applications, from quantum materials to clean energy technologies and medicine.

The newly upgraded Linac Coherent Light Source (LCLS) X-ray free-electron laser (XFEL) at the Department of Energy's SLAC National Accelerator Laboratory successfully produced its first X-rays, and researchers around the world are already lined up to kick off an ambitious science program.

The upgrade, called LCLS-II, creates unparalleled capabilities that will usher in a new era in research with X-rays. Scientists will be able to examine the details of quantum materials with unprecedented resolution to drive new forms of computing and communications; reveal unpredictable and fleeting chemical events to teach us how to create more sustainable industries and clean energy technologies; study how biological molecules carry out life's functions to develop new types of pharmaceuticals; and study the world on the fastest timescales to open up entirely new fields of scientific investigation.

"This achievement marks the culmination of over a decade of work," said LCLS-II Project Director Greg Hays. "It shows that all the different elements of LCLS-II are working in harmony to produce X-ray laser light in an entirely new mode of operation."

Reaching "first light" is the result of a series of key milestones that started in 2010 with the vision of upgrading the original LCLS and blossomed into a multi-year ($1.1 billion) upgrade project involving thousands of scientists, engineers, and technicians across DOE, as well as numerous institutional partners.

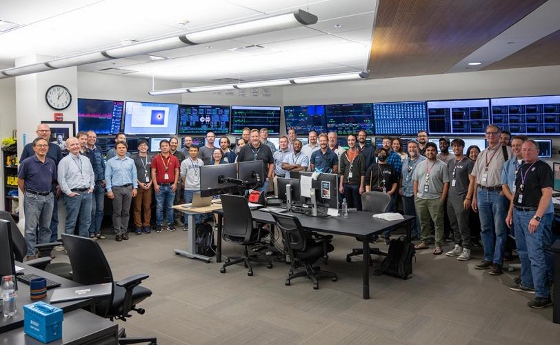

SLAC staff gather in the accelerator control room to celebrate first light produced by the LCLS-II project's pioneering superconducting accelerator. [Credit: Matt Boyes/SLAC National Accelerator Laboratory]





"For more than 60 years, SLAC has built and operated powerful tools that help scientists answer fundamental questions about the world around us. This milestone ensures our leadership in the field of X-ray science and propels us forward to future innovations," said Stephen Streiffer, SLAC's interim laboratory director. "It's all thanks to the amazing efforts of all parts of our laboratory in collaboration with the wider project team."

Taking X-ray science to a new level
XFELs produce ultra-bright, ultra-short pulses of X-ray light that allow scientists to capture the behavior of molecules, atoms, and electrons with unprecedented detail on the natural timescales on which chemistry, biology, and material changes occur. XFELs have been instrumental in many scientific achievements, including the creation of the first "molecular movie" to study complex chemical processes, watching in real time the way in which plants and algae absorb sunlight to produce all the oxygen we breathe, and studying the extreme conditions that drive the evolution of planets and phenomena such as diamond rain.

LCLS, the world's first hard XFEL, produced its first light in April 2009, generating X-ray pulses a billion times brighter than anything that had come before. It accelerates electrons through a copper pipe at room temperature, which limits its rate to 120 X-ray pulses per second.

"This upgrade to the most powerful X-ray laser in existence keeps the United States at the forefront of X-ray science, providing a window into how our world works at the atomic level," said U.S. Secretary of Energy Jennifer M. Granholm.

The LCLS-II upgrade takes X-ray science to a whole new level: It can produce up to a million X-ray pulses per second, 8,000 times more than LCLS, and produce an almost continuous X-ray beam that on average will be 10,000 times brighter than its predecessor -- a world record for today's most powerful X-ray light sources.

Partnerships for sophisticated technology
This accomplishment is the culmination of an extensive collaborative effort, with vital contributions from researchers across the world. Multiple institutions, including five U.S. national laboratories and a university, have contributed to the realization of the project, a testimony to its national and international importance.

Central to LCLS-II's enhanced capabilities is its revolutionary superconducting accelerator. It comprises 37 cryogenic modules that are cooled to -456 degrees F -- colder than outer space -- a temperature at which it can boost electrons to high energies with nearly zero energy loss. Fermilab and the Thomas Jefferson National Accelerator Facility played pivotal roles in designing and building these cryomodules.

The linac is equipped with two world-class helium cryoplants. One of these cryoplants, built specifically for LCLS-II, cools helium gas from room temperature all the way down to its liquid phase at just a few degrees above absolute zero, providing the coolant for the accelerator. [Credit: Greg Stewart/SLAC National Accelerator Laboratory]





"At the heart of the LCLS-II Project is its pioneering superconducting accelerator," said Fermilab Director Lia Merminga.

The superconducting accelerator works in parallel with the existing copper one, allowing researchers to make observations over a wider energy range, capture detailed snapshots of rapid processes, probe delicate samples that are beyond the reach of other light sources, and gather more data in less time, greatly increasing the number of experiments that can be performed at the facility.

In addition to a new accelerator, LCLS-II required many other cutting-edge components, including a new electron source, two powerful cryoplants that produce refrigerant for the niobium structures in the cryomodules, and two new undulators to generate X-rays from the electron beam, as well as major leaps in laser technology, ultrafast data processing, and advanced sensors and detectors.

The undulators were developed in partnership with Lawrence Berkeley National Laboratory and Argonne National Laboratory. Numerous other institutions, including Cornell University, have contributed to other key components, underscoring the widespread commitment to advancing scientific knowledge.

Staff engineer Dominique White, center, talks with project manager Dennis Martinez-Galarce as they work on getting one of the last cryomodules installed for LCLS-II. [Credit: Jacqueline Ramseyer Orrell/SLAC National Accelerator Laboratory]





The "soft" and "hard" X-ray undulators produce X-rays with low and high energy, respectively -- a versatility that allows researchers to tailor their experiments more precisely, probing deeper into the structures and behaviors of materials and biological systems.

Enabling breakthrough science
Researchers have been preparing for years to use LCLS-II for a broad science program that will tackle challenges that were out of reach before.

For example, scientists will be able to study interactions in quantum materials on their natural timescales, which is key to understanding their unusual and often counter-intuitive properties to make use of them to build energy-efficient devices, quantum computers, ultrafast data processing, and other future technologies.

By capturing atomic-scale snapshots of chemical reactions at the attosecond timescale -- the scale at which electrons move -- LCLS-II will also provide unprecedented insights into chemical and biological reactions, leading to more efficient and effective processes in industries ranging from renewable energy to the production of fertilizer and the mitigation of greenhouse gases.

At the intersection of physics, chemistry, and engineering, materials science also stands to benefit substantially from the new capabilities of LCLS-II. The enhanced X-ray laser's potential to observe the internal structure and properties of materials at atomic and molecular scales is predicted to lead to breakthroughs in the design of new materials with unique properties, to impact a range of industries from electronics to energy storage to aerospace engineering.

"Experiments in each of these areas are set to begin in the coming weeks and months, attracting thousands of researchers from across the nation and around the world," said LCLS Director Mike Dunne. "DOE user facilities such as LCLS are provided at no cost to the users -- we select on the basis of the most important and impactful science. LCLS-II is going to drive a revolution across many academic and industrial sectors. I look forward to the onslaught of new ideas -- this is the essence of why national labs exist."

Published September 2023
