Swedish EV maker Polestar charges sedan prototype from 10 to 80% in 10 minutes

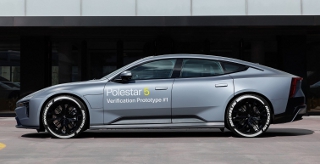

This Polestar 5 prototype was charged from 10 to 80% in just 10 minutes. [Credit: Polstar]





Swedish electric vehicle (EV) maker Polestar and fast-charging battery pioneer StoreDot (based in Israel) have demonstrated implementing StoreDot's Extreme Fast Charging (XFC) technology in a car for the first time, charging a Polestar 5 prototype from 10 to 80% in just 10 minutes. The fully drivable verification prototype four-door sedan saw a consistent charge rate starting at 310 kW and rising to a peak in excess of 370 kW at the end of charging.

This world-first demonstration used silicon-dominant cells in a drivable vehicle, rather than individual cells in a laboratory environment. It is the continuation of Polestar's aim to develop the best driving experience for the future through innovative technology partnerships. The specially commissioned 77-kWh battery pack, which has the potential to be increased to at least 100 kWh, could add 200 miles (320 km) of range to a mid-sized EV in 10 minutes.

This XFC test by Polestar and StoreDot battery engineers was designed to demonstrate proof-of-concept for XFC battery technology that could be applied to future Polestar vehicles.

"With this new technology, on longer journeys when drivers do stop they'll be able to spend less time charging and be back on the road faster than before. In fact, that stop time will be more akin to what they experience with a petrol car today," said Thomas Ingenlath, Polestar CEO

StoreDot's next-gen XFC technology utilizes silicon-dominant cells with an energy density on par with state-of-the-art Lithium-Nickel-Manganese-Cobalt-Oxide (NMC) cells, and does not require special cooling systems in the vehicle. The experimental XFC battery's modules have a structural function that improves mechanical properties and cooling ability while maintaining or reducing weight levels, with high recyclability and serviceability also paramount in the design of the pack.

In today's commercial EV batteries, fast charging rates can vary greatly depending on the battery's state of charge (SOC), sometimes dropping significantly as SOC increases. During this test, Polestar saw charging speed rise from 310 kW at 10% SOC to over 370 kW at 80% SOC, proving the technology's steady charging rate with no significant change in charging speed or efficiency whenever a driver decides to stop within this wide state-of-charge range.

Importantly, the test proves XFC technology works with today's DC charging infrastructure, which continues to feature more high-power DC chargers of 350 kW or higher.

This means drivers will be able to spend less time stopped to charge their vehicle, which for a 10 to 80% charge on many modern EVs could still take around 30 minutes. By reducing that time to 10 minutes, the charging time for a vehicle with XFC technology is much closer to what you would experience when filling a car with gasoline. Thanks to the consistent charge speeds on offer, with a suitable charger, consumers could stop for five minutes at 50% SOC and continue their journey with over 80% SOC.

Source: Polestar

Published June 2024
