Machines breathe like fish: Artificial gills for ocean gliders

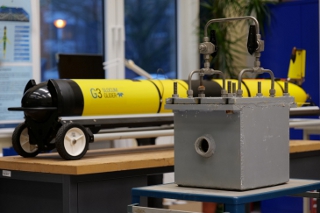

The first prototype of a new hydrogen fuel cell energy system for underwater gliders extracts oxygen from water to create a reaction that generates electricity. This initial prototype is still too big to fit into an ocean glider, but scientists are continuing to optimize it for size and power. [Photo courtesy of Hereon/Steffen Niemann]









Autonomous underwater robots, such as ocean gliders, are essential tools in marine research. Most of these systems are powered by lithium batteries, which come with their own significant drawbacks. To address these shortcomings, scientists at the Helmholtz-Zentrum Hereon in Germany (non-university research institution) have developed a new energy system. With hydrogen as an energy source, it is significantly more sustainable than lithium batteries and enables a greater range for ocean gliders. The unique feature of the new system is that it employs membrane technology that extracts oxygen from seawater -- much like a fish's gills do.

Dr. Lucas Merckelbach and Dr. Prokopios Georgopanos from the Helmholtz-Zentrum Hereon have developed the alternative energy system. Instead of using batteries, they propose powering gliders with a fuel cell that generates electricity from hydrogen and oxygen. A glider can then be filled up with hydrogen at the deployment site. A container with metal hydrides serves as a safe and efficient storage medium. These hydrides store hydrogen by bonding hydrogen to the metal hydrides at the atomic level. Oxygen, on the other hand, is not stored but extracted directly from seawater.

"Nature is a great source of inspiration for us," says Merckelbach. He works at the Institute of Coastal Ocean Dynamics and uses ocean gliders in his own research.

The concept was developed by Merckelbach after Georgopanos identified an oxygen-permeable silicone. A membrane made from the material functions as an artificial gill when integrated into the glider's hull. Exposed to oxygen-rich seawater on the outside, the membrane enables oxygen to diffuse into an internal recirculating airflow. The fuel cell then extracts oxygen from this airflow, where it reacts with hydrogen to generate electrical energy.

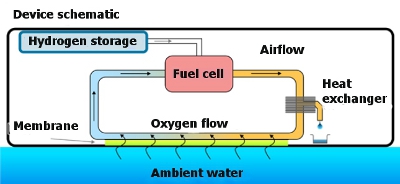

The fuel cell and the circulating air flow are located in a pressurized container. The membrane (light green), which serves as the artificial gill, is located at the interface between the device and the water and allows oxygen to pass through, which enters the circulating air flow and is consumed by the fuel cell. The hydrogen is fed to the fuel cell from a metal hydride container. A passive heat exchanger dries the gas flow sufficiently to prevent condensation of the generated water vapor. [Graphic courtesy of Hereon/Lucas Merckelbach/Prokopios Georgopanos]









"This system eliminates the need for onboard oxygen storage. The weight and volume saved can be used for additional hydrogen storage, enabling higher energy density and lower operating costs compared to current battery solutions," says Georgopanos. This would allow the gliders to operate for longer periods. Furthermore, hydrogen is a more sustainable energy source than batteries.

Georgopanos and Merckelbach have already patented their new energy system. In their paper, "A Fuel Cell Power Supply System Equipped with Artificial Gill Membranes for Underwater Applications," they present their first prototype.

The paper was recently published in the journal Advanced Science. Over the coming years, they aim to optimize the system further as part of the MUSE project. Hereon will strengthen its teams at the Institutes of Membrane Research and Hydrogen Technology for this effort. MUSE is a collaborative project with the Alfred Wegener Institute, Helmholtz Centre for Polar and Marine Research (AWI) in Bremerhaven, and GEOMAR Helmholtz Centre for Ocean Research Kiel, aiming to advance marine technology and infrastructure.

"This interdisciplinary work combines knowledge from coastal research, membrane research, and hydrogen technology -- a rare combination, but one that exists at Hereon," says Georgopanos.

Source: Helmholtz-Zentrum Hereon

Published February 2025
