Rolls-Royce recycling military jet engine components into powdered metal for 3D printing

Rolls-Royce has been involved in a first-of-its-kind recycling initiative that has turned old Royal Air Force (RAF) Tornado components into powdered metal, which has then been used to 3D print new parts for a prototype engine. The recycling project is called Tornado 2 Tempest.

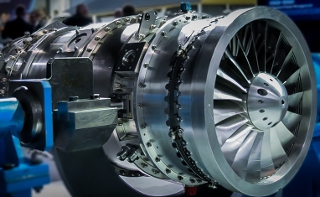

[Credit: Image courtesy of Rolls-Royce]





The Tornado was a twin-engine, variable-sweep-wing, multi-role combat aircraft that was retired by the UK's RAF in the early 2010s. The fighter jet was replaced by the next-gen Eurofighter Typhoon. The Typhoon's successor is already being worked on. It will be called Tempest (hence the recycling project's name Tornado 2 Tempest). The Tempest combat air platform is a cornerstone of Rolls-Royce's Grow Combat strategic initiative.

The new Tempest fighter jet (projected to enter service in 2035) is getting a new engine too. Rolls-Royce has been working on a small gas turbine demonstrator (prototype) engine called Orpheus.

Many of the U.K. Ministry of Defence's (MOD) surplus assets, such as spare and broken components, contain strategic metals that include high-quality steel, aluminum, and titanium. Efforts to recoup these materials in new, usable forms are of growing importance.

The Tornado 2 Tempest project team came together to identify whether some of these old Tornado fighter jet components "could be atomized into powders" (feedstock) for additive manufacturing to make new parts.

Tornado components containing high quantities of titanium, including jet engine compressor blades from a low-pressure air compressor on Tornado, were cleaned and successfully atomized, resulting in powders that were used to create a 3D-printed nose cone and compressor blades.

Working as one team, Rolls-Royce installed the 3D-printed nose cone onto an Orpheus test engine and ran it at test conditions to demonstrate the part's suitability and safety for future use, with positive results.

The project was led by Defence Equipment and Support's (DE&S) Defence Recycling & Disposals Team (DRDT) in partnership with the MOD FCAS team, Rolls-Royce, and Additive Manufacturing Solutions Limited (AMS) based in Lancashire, England.

The project's successful results demonstrate that turning old parts into new ones is viable for high-value materials and could bring important benefits to the UK's military building efforts, especially through increasing the accessibility of strategic metals to the UK defense industry and suppliers.

Source: Rolls-Royce

Published February 2025
