Toyota RAV4 2026: Totally new look, all-hybrid lineup

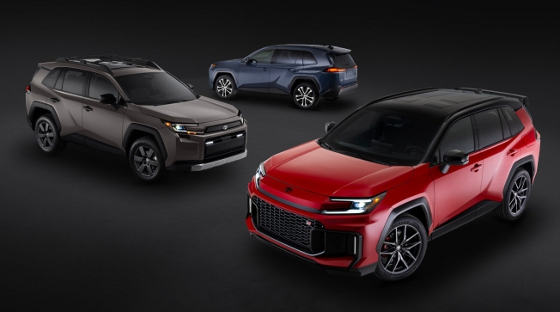

America's best-selling compact SUV, the Toyota RAV4, has a brand new, boxy look for 2026 and will come only with Hybrid Electric Vehicle (HEV) or Plug-in Hybrid Electric Vehicle (PHEV) powertrains. The 6th-gen RAV4 will be available in Core, Sport, and Rugged styles across seven grades, including a new-look Woodland and first-ever GR SPORT.

RAV4 also launches new technologies for Toyota, including the Arene software development platform, a new version of the Toyota Audio Multimedia system, and updates to the Toyota Safety Sense active safety suite.

The 2026 RAV4 Core design combines a sleek, paint-matched grille with Toyota's signature hammerhead front end for a modern take on RAV4. Wide overfenders with black cladding and an ascending belt line with chiseled body panels complement its SUV proportions. Wheel combinations vary, with 17-, 18-, or 20-in. wheels available, depending on the grade. Core models include the well-equipped LE, XLE, and Limited grades.

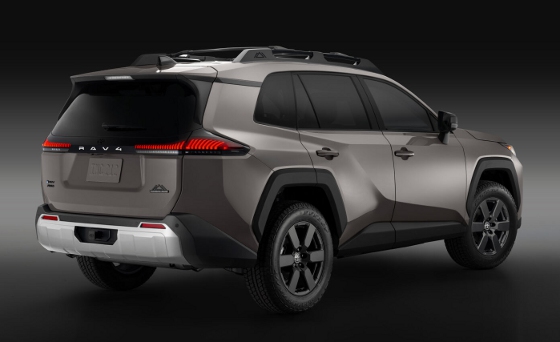

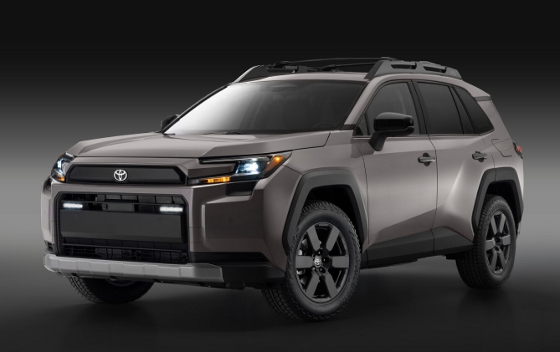

The Rugged design is exclusive to the outdoor-inspired Woodland model, which now becomes a standalone grade to the RAV4 lineup. For the Rugged design, the peak of the hammerhead front end is slightly raised and its black, split upper and lower grille with integrated Rigid Industries LED lighting give it an adventurous look. The model also stands about a half inch higher due to standard All-Terrain tires, has standard raised roof rails with crossbars, and a 1 1/4-in. rear activity mount for travel-ready versatility. The Woodland grade will have standard AWD and be available in a HEV or PHEV powertrain.

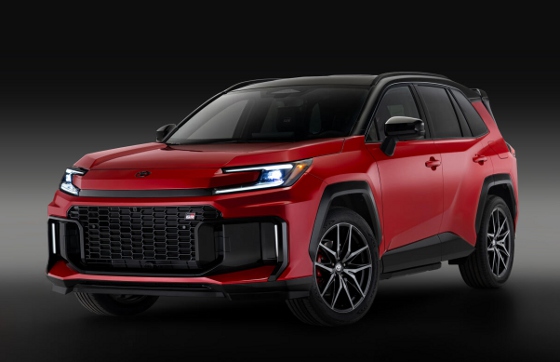

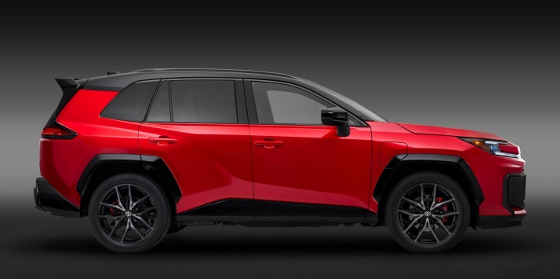

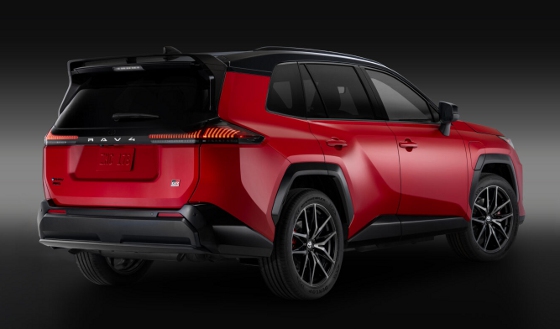

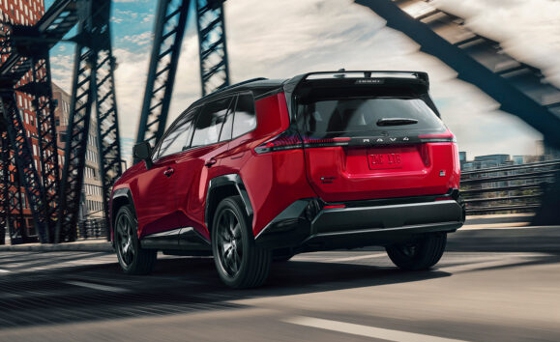

At the forefront of the Sport designs is the RAV4 GR SPORT. Designed with input from the TOYOTA GAZOO Racing engineering division, it takes inspiration from motorsports. It prioritizes handling, with a GR-tuned suspension and power steering, enhanced body rigidity, and summer tires on unique 20-in. wheels with increased offset. It will be exclusively available with a PHEV powertrain and has a GR Functional MATRIX grille, along with front and rear wing-type spoilers for aggressive style. The XSE and SE grades round out the Sport designs. They will be available in HEV or PHEV powertrains and a choice of FWD or AWD depending on grade, and have up to 20-in. wheels, blue interior stitching, and available two-tone paint.

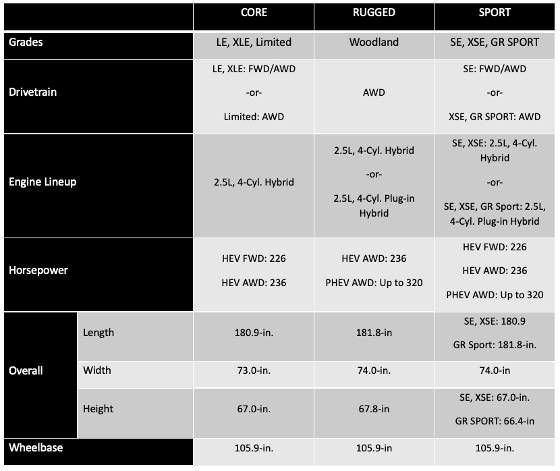

The new, five-passenger RAV4 comes in PHEV and HEV models, with the PHEV models featuring a newly developed Plug-in Hybrid System that combines a high-capacity drive battery and high-output charger compatible with Toyota's latest sixth-generation hybrid. The HEV system increases output over the prior generation, climbing to 236 hp (combined system net) on AWD models (219 hp combined system net previously). RAV4 hybrid will also be available in FWD for the first time, and will have 226 hp (combined system net) -- a 23-hp improvement over the prior generation's 203-hp FWD gas model. All models use a continuously variable automatic transmission (CVT).

The latest PHEV system also adds output, with up to an impressive 320 hp (combined system net), up 18 hp over the outgoing system. Variety is also the name of the game for PHEV models, moving from two to four grades in model year 2026, with the Woodland and GR SPORT models joining the previously available SE and XSE. All PHEV models will have standard AWD. The PHEV model also increases its all-electric driving range to a manufacturer's estimated 50-mile range rating. The PHEV XSE and Woodland grades will have DC fast charging, capable of charging from 10% to 80% in approximately 30 minutes.

The 2026 RAV4 HEV debuts Toyota's fifth-generation Hybrid system on an SUV model. Powered by a 2.5-L, 4-cylinder engine, it has improvements to the transaxle, power control unit, battery, and other components -- all of which contribute to its enhanced motor output.

A new Plug-in Hybrid system will also debut on RAV4. It will have a 2.5-L, 4-cylinder engine with two electric motors and high-capacity traction battery. For the new system, Toyota has adopted silicon carbide semiconductors in the front axle to achieve miniaturization and high efficiency. This change, in combination with the larger battery, has led to the increase in range. DC fast charging is also available, with the XSE and Woodland grades being capable of high-speed charging through an equipped CCS charging port. The SE and GR SPORT PHEV models will be equipped with a J1772 charging port. Charging at home or with standard public chargers can also be quicker with up to an 11-kW AC onboard charger available.

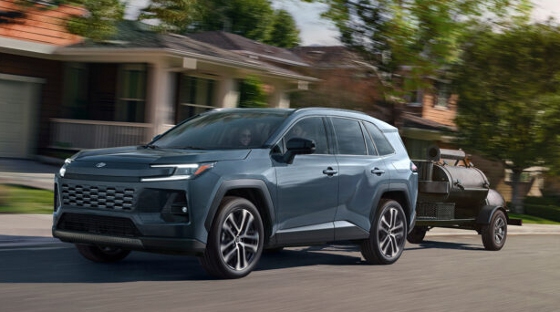

An increase in towing capacity on specific AWD grades adds to RAV4's overall utility. The HEV XLE, Woodland, SE, XSE, Limited, and PHEV SE, XSE, and Woodland grades with AWD, will be capable of towing up to 3,500 lb. All FWD models and the LE AWD model will have a 1,750-lb towing capacity.

The all-new sixth-generation 2026 RAV4 keeps the model's agile and functional spirit. Built on the Toyota New Generation Architecture-K (TNGA-K) platform, the newest RAV4 will receive structural rigidity increases due to reinforcement of the frame joints and the suspension mounting points, both benefiting handling and ride comfort. It also adopts a high-damping adhesive that reduces micro-vibrations and road noise.

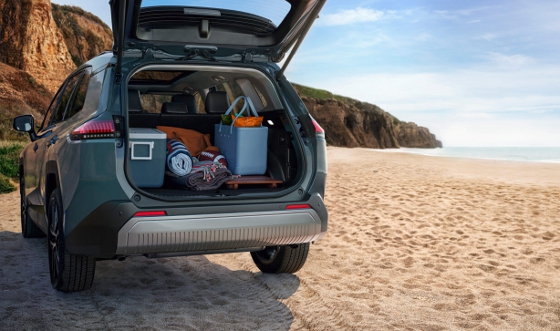

The exterior design highlights RAV4's SUV proportions, with large tires, an elevated ride, and highly usable rear cargo area. Whether it's a Core, Rugged, or Sport model, each adapt the Toyota hammerhead front end for a strong, modern take on RAV4. From the side, its fender flares give the SUV a wide stance, and chiseled door panels ascend to a stout rear. Stylish new LED signature taillights give the functional rear hatch a tech-forward feel, while also adding a sense of width. Additional details like front and rear spoilers, different trim colors, and wheel treatments individualize RAV4's style across the grades.

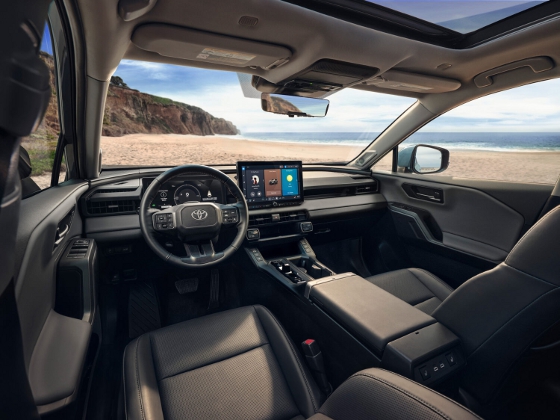

The 2026 RAV4's interior prioritizes functionality, aiming for a harmonious blend of comfort and user-friendly technology. The center stack groups various functions together, like the touchscreen display, drive mode selection, and storage for a smartly organized space while the center console combines the shifter, cup holder with a removable divider, and arm rest/storage bin with a two-way closure. On select grades, the cockpit adds Toyota's new shift-by-wire system, with a minimalist toggle switch that has intuitive operation and brings a futuristic feel to the new RAV4.

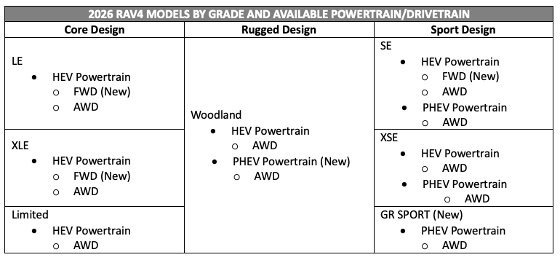

The 2026 RAV4 puts choice at the center of its model lineup. For instance, FWD is available on hybrid LE, XLE, and SE grades for the first time, and the previously available AWD system is offered on all grades. The following combinations will be available:

A new, slim 10.5-in. or available 12.9-in. touchscreen gives the cockpit a clean, modern feel. Digital HVAC controls are a new feature integrated into the bottom of the touchscreen display and have a permanent home along the bottom of the screen. Across all grades, a new, standard 12.3-in. digital gauge cluster will give drivers customizable options and integrated multimedia information. A Head-Up Display will be available on the Limited (HEV) and XSE (PHEV) grades. A six-speaker audio system will be standard, and a nine-speaker JBL Premium Audio system will be available, depending on the grade.

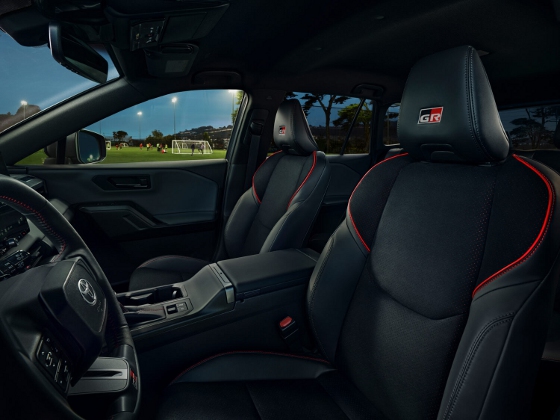

Seating surfaces will range from fabric to SofTex with available seating colors like black, light gray, or to the new Mineral color on the Woodland. The Woodland interior also adds other touches for a vibrant, outdoor-inspired cabin, like uniquely patterned perforated soft-touch door and dash panels, red orange accents, and standard, Woodland-branded all-weather floor and cargo mats. On the XSE and GR SPORT grades, perforated BRIN•NAUB microsuede and SofTex-trimmed seating with colorful accents add a dynamic feel. The RAV4 GR SPORT model adds GR logos to the front headrests and steering wheel, while paddle shifters and aluminum sport pedals give it a sporty appeal.

Exterior color options also bring standout style. The Woodland grade will have an all-new available Urban Rock exterior paint color, which is exclusive to the grade, while Meteor Shower, Everest, and Storm Cloud colors join the RAV4 color palette. Favorites like Ice Cap, Wind Chill Pearl, Midnight Black Metallic, Ruby Flare Pearl, and Blueprint will continue for the new generation. Available two-tone paint options are also carried forward, like the new combination of Meteor Shower with Black roof on the XSE or the GR SPORT's exclusive pairing of Supersonic Red with a Black roof.

The new RAV4 will be equipped with Arene, an all-new software development platform created by Woven by Toyota. The introduction of Arene is Toyota's first step toward fully software-defined vehicles. The platform will be the foundation for the company's most advanced safety, security, and connectivity technologies. The 2026 RAV4 will also launch the newest version of the Toyota Audio Multimedia system, which is enabled by Arene.

The Toyota RAV4 will also be the first Toyota model to receive the Toyota Safety Sense 4.0 (TSS 4.0) system, also powered by the Arene software development platform. The new version of Toyota's standard active safety suite will have updates to its hardware and detection capabilities. Additional details will be available closer to the on-sale date.

New 2026 RAV4 models are expected to start arriving at Toyota dealerships across the U.S. later this year, and pricing will be announced closer to the on-sale date. We expect base pricing to start around $32,000.

Learn more at toyota.com/upcoming-vehicles/rav4pluginhybrid/.

Source: Toyota

Published June 2025
