Why does static friction weaken at higher loads? Researchers have an explanation

Picture yourself at a busy pedestrian crossing. When the light is red, everyone waits -- until one person starts to cross. Soon, others follow, and, eventually, everyone follows the crowd and crosses. Physicists in Amsterdam have discovered that a very similar process happens at the microscopic level, when two touching surfaces start to slide. Their results were published in Physical Review Letters at the end of April.

In their experiment, Liang Peng, Thibault Roch, Daniel Bonn, and Bart Weber pressed a smooth silicon surface against a rough one. The researchers, from the University of Amsterdam and the Advanced Research Center for Nanolithography, then explored how the friction behaved when the strength with which the two surfaces are pressed together was varied. Does it get harder to slide the two surfaces along one another when one presses harder? If so or if not, why?

Understanding the why
It turned out that the amount of friction depends on a very interesting underlying process. At low applied force, only one tiny contact point -- a so-called "asperity" -- bears the load, and it needs to be pushed hard before it slips. However, as the force perpendicular to the interface increases, many asperities come into contact. The team discovered that in this situation, once a few asperities start slipping, others are triggered to follow -- just like the first bold pedestrians prompt a crowd to cross.

As a result, and perhaps counterintuitively, the surface starts sliding more easily, and the relative resistance to motion -- the so-called static friction coefficient -- decreases.

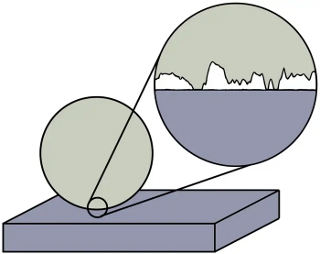

This sketch shows what the researchers see when they zoom in strongly on the interface between two materials. The rougher material (gray, on top) touches the smoother material (purple, bottom) in various asperities. [Credit: Image by Bart Weber/Courtesy of University of Amsterdam Institute of Physics]

Using a simple mathematical model to support their experiments, the researchers were able to show that the crowd-like behavior of the asperities explains why static friction weakens at higher loads.

From semiconductors to earthquakes
The results have applications at small and large scales. At small scales, in the semiconductor industry, the construction of electronic devices often requires clamping curved surfaces to a flat table. This results in an interface that is right at the boundary of slipping and not slipping. The new research explains how the onset of sliding is influenced by the scale of the contact, which is important to know when accurately constructing devices using all sorts of materials.

At larger scales, earthquakes are the result of the onset of sliding between sections of the Earth's crust. Understanding how this slip starts, and what effects become important when interfaces get bigger, can support our understanding of how earthquakes come about, and it may help predict them in the future.

Source: University of Amsterdam Institute of Physics

Published June 2025
