Fascinating: Reasons why hydrogen makes metal brittle discovered

A study led by University of Oxford and Brookhaven National Laboratory researchers has uncovered how exposure to hydrogen atoms dynamically alters the internal structure of stainless steel. The findings reveal that hydrogen allows internal defects in steel to move in ways not normally possible, which can lead to unexpected failure.

This discovery offers vital insights that could help make hydrogen fuel systems safer and more reliable, from aircraft and fusion reactors to pipelines and storage tanks. The study was published September 9 in Advanced Materials.

In the world-first experiment, the team used an advanced X-ray imaging technique to track how tiny defects (called dislocations) inside stainless steel respond to hydrogen exposure. This is crucial to understanding how hydrogen can cause metals to weaken or fail, and the findings could guide the design of next-generation alloys for a growing hydrogen economy.

Lead researcher Dr. David Yang of Brookhaven National Lab said, "Hydrogen has great potential as a clean energy carrier, but it's notorious for making materials it comes in contact with more brittle. For the first time, we have directly observed how hydrogen changes the way defects in stainless steel behave deep inside the metal, under realistic conditions. This knowledge is essential for designing alloys that are more resilient in extreme environments, including future hydrogen-powered aircraft and nuclear fusion plants."

As countries aim to transition to fossil-free energy systems, hydrogen has been touted as the ideal fuel for "hard to decarbonize" sectors such as shipping, aviation, and heavy freight. However, this gas can cause unexpected cracking in metals (known as hydrogen embrittlement) that threatens the integrity of high-pressure vessels, pipelines, and critical components in energy systems.

While engineers have long known that hydrogen affects metal performance, the precise mechanisms at the atomic scale have remained elusive, because hydrogen is very difficult to detect.

"Using coherent X-ray diffraction, a non-destructive method, we were able to watch atomic-scale events unfold in real time inside solid metal without cutting open the sample," said the study's principal investigator, Prof. Felix Hofmann of the Department of Engineering Science, University of Oxford. "It has been tremendously exciting analyzing this data and piecing together the parts of this scientific puzzle. Some of the results really surprised us by showing up behavior we weren't expecting."

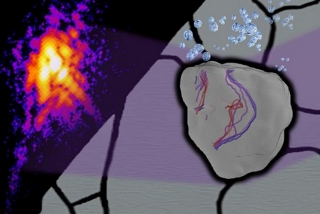

An artistic impression of the experiment: 3D rendering of the micro-scale stainless steel grain investigated in this study shows the evolution of defects inside it with time (early: blue lines; later: red lines). The grain is embedded within a polycrystalline bulk sample. By focusing a coherent X-ray beam on this grain, a coherent X-ray diffraction pattern can be measured, from which the shape of the grain and the defects inside it can be reconstructed. By continually monitoring this grain while hydrogen is introduced, researchers studied how hydrogen interacts with defects. [Credit: David Yang, Felix Hofmann (bubbles graphic sourced from Free PNG Logos, John D.)]

To uncover what hydrogen does inside the material, the researchers used an ultra-bright beamline at the Advanced Photon Source in a United States partner facility to focus X-rays onto a single stainless steel grain, roughly 700 nanometers (nm) in diameter. They then applied a technique called Bragg Coherent Diffraction Imaging to measure how the internal structure of this grain changed over time. In this method, the X-rays are scattered by the crystal lattice, creating a complex interference pattern. This can be reconstructed to reveal the structure of the grain, the crystal defects within it, and how they distort the lattice around them.

By imaging the steel grain over 12 hours, the experiment revealed three key changes once hydrogen was introduced:

• Dislocations became unexpectedly mobile. Internal faults began to move and reshape themselves, even without additional external stress. This suggests that hydrogen acts like a lubricant at the atomic scale, making it possible for defects to move more easily.
• A surprising out-of-plane motion of defects was observed. This upward shift, known as "climb," is unexpected and signals that hydrogen allows atoms to rearrange in ways that aren't typically possible at room temperature. This process is thought to play a critical role in reducing the hardness of alloys.
• The dislocation's surrounding strain field reduced noticeably as hydrogen accumulated. A strain field is the zone around a defect where atoms are pushed or pulled out of place, allowing the material to accommodate the defect. This study provides the first direct, 3D experimental measurement of a long-theorized effect called "hydrogen elastic shielding," where hydrogen reduces defect strain fields, effectively shielding the surrounding metal from stress.

These findings help explain why hydrogen can lead to unexpected failure in metals, since it allows internal defects to move more easily and in ways that are not normally possible.

According to the researchers, the work directly informs how to model and predict material performance in hydrogen environments, feeding into multi-scale simulation frameworks used by industry. It also points toward potential strategies for engineering novel alloys that offer greater resistance to hydrogen embrittlement.

"This research is only possible because of the availability of extremely bright and coherent X-ray beams at international synchrotron sources," said Hoffman. "The results are highly complementary to information from electron microscopy and simulations. We are now planning even more sophisticated experiments to study how hydrogen changes other types of defects. At the same time, we're also developing models to help industry design complex hydrogen fuel systems."

The study also involved researcher partners from Argonne National Laboratory in the United States and the University College London in the UK.

Source: University of Oxford

Published September 2025
