CERN experiment succeeds in transporting antimatter

In a world first, a team of scientists from the BASE experiment at CERN successfully transported a trap filled with antiprotons in a truck across the Laboratory's main site. CERN is The European Organization for Nuclear Research on the France-Switzerland border that is also home to the Large Hadron Collider.

The team managed to accumulate a cloud of 92 antiprotons in an innovative portable cryogenic Penning trap, then disconnect it from the experimental facility, load it onto a truck, and continue experiment operation after transport.

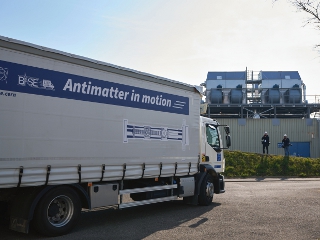

Truck transporting the BASE-STEP trap filled with antiprotons [Credit: Image courtesy of CERN]





This is a remarkable achievement, given that antimatter is very difficult to preserve, as it annihilates upon contact with matter. This feat was just a first step, with the ultimate aim being to transport antiprotons to other European laboratories, such as Heinrich Heine University Düsseldorf (HHU), where very high-precision measurements of the antiproton properties could be performed.

Antimatter is a naturally occurring class of particles that is almost identical to ordinary matter, except that the electric charge and magnetic moment are reversed. According to the laws of physics, the Big Bang should have produced equal amounts of matter and antimatter. These equal-but-opposite particles would have quickly annihilated each other, leaving an empty Universe. However, our Universe contains predominantly matter, and this imbalance has baffled scientists for decades. Physicists suspect that there are hidden differences that may explain why matter survived and antimatter all but disappeared.

To deepen our understanding of antimatter, the BASE collaboration aims to precisely measure the properties of antiprotons, such as their intrinsic magnetic moment, and then compare these measurements with those taken with protons. However, they face a problem: "The machines and equipment in CERN's 'antimatter factory,' where BASE is located, generate magnetic field fluctuations that limit how far we can push our precision measurements," said Stefan Ulmer, a spokesperson for BASE.

These fluctuations are minuscule, of the order of one-billionth of a tesla, more than 20,000 times smaller than the magnetic field of the Earth, and undetectable outside the building. "However, the precision of the measurements taken in BASE is such that gaining an even deeper understanding of the fundamental properties of antiprotons will require moving the experiment out of the building," said Ulmer.

CERN's "antimatter factory" is the only place in the world where antiprotons can be produced, stored, and studied. Two successive decelerators, the Antiproton Decelerator (AD) and the Extra Low Energy Antiproton ring (ELENA), provide several experiments with low-energy antiprotons -- the lower their energy, the easier they can be stored and studied.

Among these experiments, BASE holds long-standing records for containing antiprotons for more than one year, and the experiment has invented this pioneering approach in order to move on to the next stage: transporting antiprotons to an offline space for more precise experiments as well as sharing them with others. That's why they developed the BASE-STEP trap: an apparatus designed to store and transport antiprotons.

BASE-STEP is small enough to be loaded onto a truck and fit through ordinary laboratory doors, and it can withstand the bumps and vibrations of transport. The current apparatus, which includes a superconducting magnet, liquid helium cryogenic cooling, power reserves, and a vacuum chamber that traps the antiparticles using magnetic and electric fields, weighs 1,000 kg -- much more compact than BASE or any other existing system used to study antimatter.

"To reach our first destination, our dedicated precision laboratory at HHU in Germany, would take us at least 8 hours," said Christian Smorra. "This means we'd have to keep the trap's superconducting magnet at a temperature below 8.2 K for that long. So, in addition to the liquid helium, we'd need to have a generator to power a cryocooler on the truck. We are currently investigating this possibility." Nevertheless, the greatest challenge remains on arrival at the destination: to transfer the antiprotons to the experiment without them vanishing.

"Transporting antimatter is a pioneering and ambitious project, and I congratulate the BASE collaboration on this impressive milestone. We are at the beginning of an exciting scientific journey that will allow us to further deepen our understanding of antimatter," said CERN Director for Research and Computing, Gautier Hamel de Monchenault.

Source: CERN

Published April 2026
