World's first high-altitude hybrid electric flight takes place: GE Aerospace, NASA, Boeing partnership

GE Aerospace and its development partners conducted the first hybrid electric flight above 30,000 ft recently, reaching the same altitude levels of passenger commercial aircraft. The test aircraft was adapted from a twin-turboprop Saab 340B. [Credit: Image courtesy of GE Aerospace]

For decades, the standard recipe for commercial aviation has remained largely unchanged: burn jet fuel, create thrust, and fly high. High above the clouds, however, where the air thins and temperature management becomes a high-wire act, a quiet revolution has taken flight.

At the Farnborough International Airshow last week in the UK, GE Aerospace -- alongside NASA, BETA Technologies, and Boeing -- announced a watershed moment for aviation: the successful flight demonstration of a fully integrated, megawatt-class hybrid electric propulsion system above 30,000 ft. The historic campaign, which included a single flight in hybrid electric mode lasting more than two hours, marks the first time a megawatt-class, multi-kilovolt system has reached the cruising altitudes typical of commercial passenger jets.

"The aviation industry's first high-altitude hybrid electric flight is one for the history books," said H. Lawrence Culp, Jr., Chairman and CEO of GE Aerospace. "GE Aerospace is grateful to NASA, BETA Technologies, and Boeing for their collaborative partnership to accelerate hybrid electric technology to meet customer needs for greater efficiency, durability, and range."

The anatomy of an electric pioneer

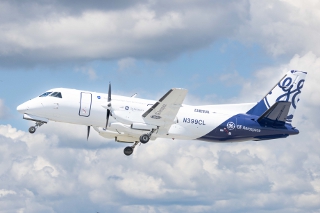

To pull off the historic test, the engineering team transformed a classic workhorse: a twin-turboprop Saab 340B.

While the left side of the aircraft maintained its standard setup, the right side underwent a radical evolution. Inside a custom, upside-down nacelle engineered by Boeing subsidiary Aurora Flight Sciences -- designed specifically to maximize ventilation -- sat a complex web of cutting-edge flight hardware. The system included GE Aerospace-developed motor/generators, power converters and inverters, controllers, Avio Aero gearboxes, Dowty propellers, Unison heat exchangers, torque sensing, and engine harnesses, and a CT7 engine. BAE Systems provided the batteries used, and Boeing subsidiary Aurora Flight Sciences supplied the complete nacelle.

During the flight campaign, this integrated system didn't just passively ride along. The electric powertrain actively drove the propeller while simultaneously capturing and generating power back to the battery pack provided by BAE Systems.

Solving the high-altitude puzzle
Transitioning electric power from ground vehicles to commercial aircraft isn't simply a matter of scaling up batteries. As air pressure drops at high altitudes, electrical systems face severe risks of dielectric breakdown and arcing across high-voltage lines. Meanwhile, dissipating heat in thin air presents a massive thermal management challenge.

To conquer these obstacles, the team built flightworthy components capable of managing multi-kilovolt currents under extreme conditions, delivering a system with the power density, safety, and reliability needed for commercial flight.

"This hybrid electric system improved the high-altitude performance and climb capability while creating a flying laboratory to inform all future hybrid designs," said Kyle Clark, founder and CEO of BETA Technologies.

BETA, which acted as the primary systems integrator, proved the system's ruggedness firsthand: BETA pilots ferried the transformed Saab 340B across the North Atlantic to the UK for the Farnborough display, running in hybrid electric mode along every leg of the journey.

A decade in the making
While the Farnborough announcement feels like a sudden leap into the future, it is actually the culmination of a 10-year engineering marathon supported by NASA's Electrified Powertrain Flight Demonstration (EPFD) project.

--------------------
HYBRID ELECTRIC DEVELOPMENT TIMELINE
2016: Ground tests for electric motor-driven propellers
2022: Simulated 45k-ft tests at NASA Electric Aircraft Testbed
2025: Strategic partnership/equity investment in BETA Technologies
2025: Narrowbody power-transfer test (NASA HyTEC project)
2026: Megawatt-class ground testing paving way for flight
2026: Historic >30,000 ft flight test campaign
--------------------

"Hybrid electric technologies are durable and efficient," said Mohamed Ali, president and CEO of GE Aerospace Commercial Engines & Services. "By flying a hybrid electric engine system at altitudes never achieved before, we're proving to our customers and to the industry the advanced capabilities we can bring to next-generation aircraft with ready technologies."

The path ahead: from testbed to modern fleets
The breakthroughs achieved during the EPFD campaign directly feed into GE Aerospace's broader effort: the CFM RISE (Revolutionary Innovation for Sustainable Engines) program. Conducted alongside Safran Aircraft Engines, the RISE program has already logged over 500 test campaigns and 3,000 endurance cycles.

By marrying hybrid electric architectures with advanced concepts such as Open Fan engines and compact cores, the program aims to slash fuel burn and carbon emissions by more than 20% compared to today's most efficient commercial engines.

For airshow attendees watching the Saab 340B perform its daily flying displays over Farnborough, the message in the sky is clear: Hybrid electric flight is no longer a distant theoretical promise. It has passed a key test, high above the clouds, proving that the future of aviation is already cleared for takeoff.

Source: GE Aerospace

Published July 2026
