Why smaller crumpled sheets carry larger loads

Crumple a thin sheet into a ball, and it becomes a tiny load-bearing structure. A natural question follows: When two balls are packed to the same density, does the one made from a larger sheet carry more load?

Intuition would say yes. Researchers at Xi'an Jiaotong University report the opposite.

When two-dimensional macromolecules, a class of ultrathin sheet-like materials that includes graphene-like membranes, are crumpled under three-dimensional confinement, smaller sheets resist compression better than larger ones at the same packing density.

To uncover the origin of this "smaller is stronger" effect, the team combined coarse-grained molecular dynamics simulations with systematic compression tests on four very different materials: paper, aluminum foil, polydimethylsiloxane (PDMS), and silicone rubber. Despite spanning vastly different chemistries, stiffnesses, and length scales, all four systems exhibited the same trend.

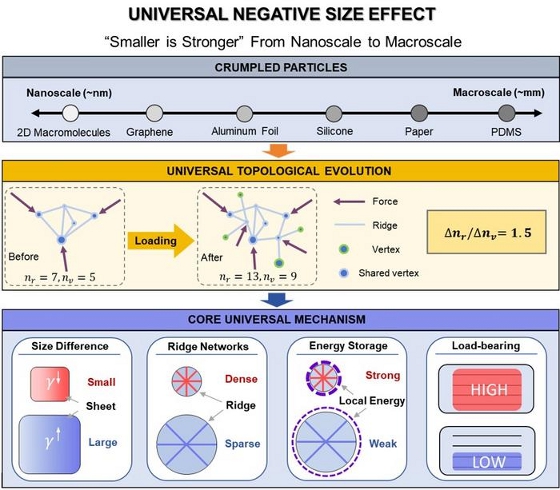

Smaller sheets consistently formed denser networks of ridges, the line-like structural features that channel and bear load inside a crumpled ball, whereas larger sheets tended to develop broad self-folded regions. Energy landscape analysis confirmed that both load and stored elastic energy concentrate along these ridges, identifying ridge density as a central determinant of mechanical performance.

The researchers also identified a simple topological rule governing how crumpled structures evolve under increasing compression. As packing tightens, the number of newly created ridges and the number of newly created junctions grow in a near constant ratio of about 1.5 to 1, independent of sheet size or material.

This universal evolution pathway allows smaller sheets to preserve their ridge-density advantage throughout loading, sustaining the "smaller is stronger" behavior across the entire densification process. Using symbolic regression, the authors further distilled the relation between load-bearing pressure and ridge density into a compact quantitative expression, providing a direct bridge between microscopic topological features and macroscopic mechanical response.

By linking microscopic topology to macroscopic mechanics, the work establishes a design framework in which performance is governed as much by how a sheet folds as by what it is made of. The authors suggest that the findings open routes toward lightweight, high-strength components, energy-absorbing structures, and mechanical metamaterials whose response can be tuned through topology, and may also offer fresh insight into crumpling phenomena in nature, from insect wings to cell membranes.

Source: Science China Press

Published August 2026
