Cool! Solar tower simulates spacecraft's fiery Titan entry

Artist's concept of Dragonfly on the surface of Titan. [Credit: Image courtesy of NASA/Johns Hopkins APL]





When NASA sends Dragonfly to explore Titan, Saturn's largest moon, the first-of-its-kind rotorcraft must first survive a roughly two-hour plunge through Titan's dense, nitrogen-rich atmosphere. During that fiery descent, friction and compression will generate intense heat as Dragonfly decelerates toward the surface.

At Sandia National Laboratories' National Solar Thermal Test Facility, engineers helped NASA prepare for that critical phase by recreating flight-like heating on large test articles to qualify Dragonfly's heat shield thermal protection system. Sandia and NASA recently completed the sixth and final solar-tower test campaign at the facility, capping a multiyear effort that began in 2023. The work also expanded a repeatable high-heat testing capability that benefits Sandia's nuclear deterrence mission.

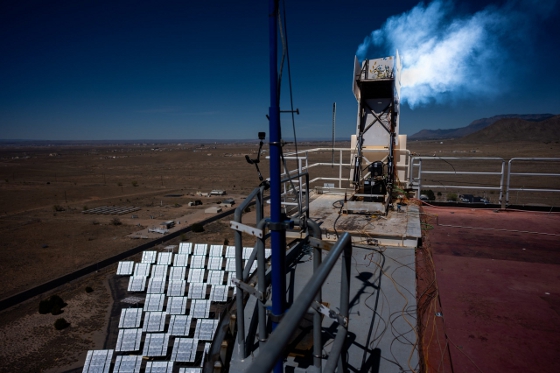

The mirror-like heliostat field at Sandia National Laboratories' National Solar Thermal Test Facility can rotate into the exact position needed to reflect and concentrate sunlight for each test. [Credit: GIF by Craig Fritz/Courtesy of Sandia]

During each visit, the team conducted four to eight tests, evaluating different heat shield segments under flight-like heating conditions. Each test began with the team mounting a heat shield segment at the top of Sandia's 200-ft solar tower on a fixture that allowed engineers to vary its orientation, including the angle at which concentrated sunlight struck the material. Operators then aimed the facility's hundreds of mirror-like heliostats to focus sunlight onto a 24-in. area, delivering a controlled heat pulse that could exceed 4,500 degrees Fahrenheit, well above the predicted conditions for Dragonfly's Titan entry. The team also flowed inert gas over the heat shield sample to better approximate Titan's atmosphere.

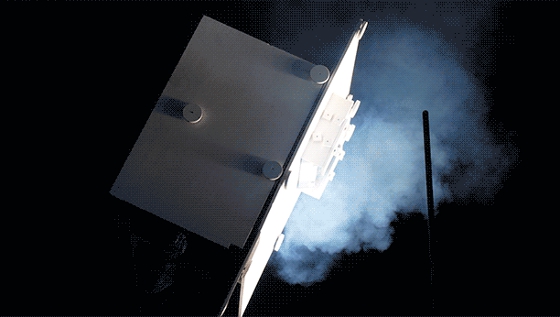

A time lapse of a heat shield test at Sandia National Laboratories' National Solar Thermal Test Facility. The heliostat field focused sunlight onto a 24-in. area of test material mounted at the top of the solar tower, delivering a controlled heat pulse exceeding 4,500 F. The team also flowed inert gas over the sample to better approximate Titan's atmosphere. [Credit: GIF by Craig Fritz/Courtesy of Sandia]

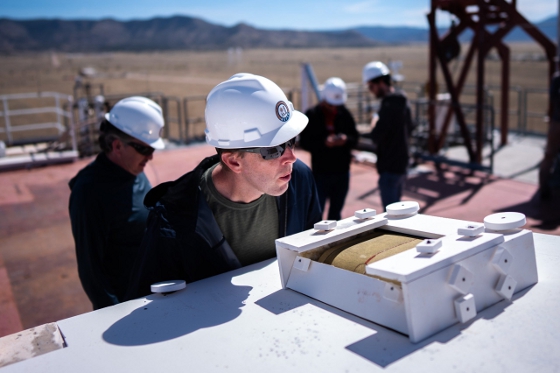

The heat shield material charred and smoked under the intense heat. Infrared cameras and other instruments recorded how heat moved across curved shoulders, edges, and gaps in the material.

"We are able to simulate the heating profile on a physical scale and time scale that's meaningful for flight, using concentrated sunlight to deliver repeatable tests, independent validation, and opportunities to iterate," said Ken Armijo, Sandia's lead engineer and test director for the campaign. "These tests help build confidence in the heat shield system before it ever flies."

Dragonfly's heat shield system is part of the spacecraft's entry, descent, and landing assembly, designed to protect it during atmospheric entry. The heat shield is made of PICA-D, or Phenolic Impregnated Carbon Ablator-Domestic, a material developed by NASA's Ames Research Center in California's Silicon Valley.

NASA used the Sandia tests to examine how the heat shield material performed in multiple configurations, including flat segments, rounded shoulder segments, and gap fillers. The team also tested pristine and intentionally marred samples to confirm the system can protect the spacecraft even if there are minor imperfections.

The NASA team said it selected Sandia's National Solar Thermal Test Facility because it is the only ground qualification facility that can reproduce the predicted amount of heat Dragonfly will face on a test article large enough to generate flight-like stresses in the material. The team will use data from the tests to complete qualification work for Dragonfly's heat shield system.

For Sandia, the Dragonfly campaign is more than a customer test series. As part of the NASA work, the team refined a test method that combines controlled solar heating, detailed diagnostics, and inert gas flow to recreate entry-like environments at scale. The work expands Sandia's options for evaluating materials and components for national security programs, including nuclear deterrence.

"This test series for NASA is not just leveraging Sandia's engineering capabilities; it's bolstering them," Armijo said. "We've created new testing possibilities that also benefit our core nuclear deterrence mission as well as the commercial aerospace industry."
